Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light

Brand Name : HuanYu Dream

Model Number : HY-5054R660

Certification : RoHS

Place of Origin : China

MOQ : 4000pcs

Price : Negotiable

Payment Terms : T/T, Paypal,Ali Pay

Supply Ability : 50000pcs/Day

Delivery Time : 7-9 Work Days

Packaging Details : 4000pcs/Reel

Type : 5054 Plant growth SMD LED

Wavelength : 660-665nm

Current : 150mA

Voltage : 2.0-2.2V

Lumen : 12-14LM

PPF : 3.0-3.3μmol/s/W

Viewing Angle(°) : 120

Storage Temperature : -40-80℃

Contact Now

Led 5054 Red Chip Deep 660-665nm For Led Grow Light

5054 SMD Led Chip Red 660-665nm

  • Excellent High PPF, PPF/W performance
  • Reliable PLCC-2 package design
  • Package Size:5.0(W)x5.4(L)*0.7(H)mm
  • High reliability affirms long lifetime
  • Greenhouse, vertical farming, cultivation, growlights, life science and interwaving application

Specifications(one models in different current)

Current(mA) Voltage Wave length Brightness LUMINUOUS EFF PPF(umol/s)
150mA 1.9-2.1V 660-665nm 12-14LM 40-45lm/w 3.0-3.2
60mA 1.8-2.0V 660-665nm 4-6LM 40-45lm/w 3.1-3.3

Test report

@60mA

Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light

@150mA

Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light

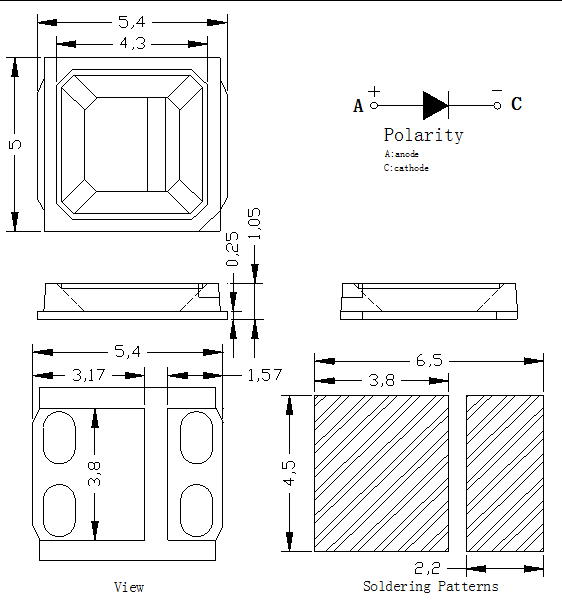

Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light

Company Information

Our Dust-Free workshop is at thousand-level. We have the Automatic die-boding machine,ASM Wire bonding machine, Automatic molding machine, Automatic sorting machine, Automatic taping machine, etc., and Temperature Humidity Cycle test machine, Automatic Tensile testing machine, X-Ray and others inspection machine to assure our products quality.

Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light

Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light

Lots of customers visit our factory and we establish the long term coorperation relationship with them.

Red LED SMD 5054 660nm-665nm 150mA For LED Grow Light
