Multi Color 0.2W 5050 RGBCW SMD LED Chip 5050 Smd Led Chip Smd 5050
0.2W 5050 RGBCW SMD LED Feature
* Slim Size SMD Package
* Stable Performance & Great CCT Unity
* Design Flexibility High Lumen Output and High Efficacy
* R, G, B, Y, A, UV, IR Light Color Available
* Full Wavelength 365-730nm Available
* Enviromental Friendly; ROHS Compliance
5054 SMD LED Chip, with its size of 5.0mm X 5.4mm, is a great choice for energy-efficient lighting solutions. It features a wide range of available color temperatures, ranging from 2700K to 25000K, which makes it suitable for different applications. Moreover, it also offers dimming capabilities with 4 x 20mA current. Additionally, it is also suitable for large scale production, as it comes in a package of 1000pcs/reel. So, if you are looking for a reliable and cost-effective solution for your lighting needs, the 5054 LED Chip is an excellent choice.
Specifications
| Type | Power | Color | VF | Current | Brightness |
| 5050 RGB+W | 0.2W | R:620-630nm G:520-530nm B:460-470nm C/W:1800K-25000K | R:2.0-2.4V G/B/W(+W):3.0-3.4V | 20mA*4 | R:600~800mcd
G:1800~2200mcd B:500~700mcd W:7~8LM |
| 0.8W | 60mA*4 | R:7-9Lm
G:15-17Lm
B:4-5Lm
W:19-21Lm |
| 5054 RGB+W | 2W | 150mA*4 | R:14-19Lm
G:30-35Lm
B:6-9Lm
W:45-50Lm |
| 4W | 300mA*4 | R:25-30Lm
G:50-60Lm
B:12-17Lm
W:75-85LM |
| 5054 RGB+W+W | 0.2W | 20mA*5 | R:600~900mcd
G:1800~2400mcd B:400~600mcd W:2100-2800mcd |

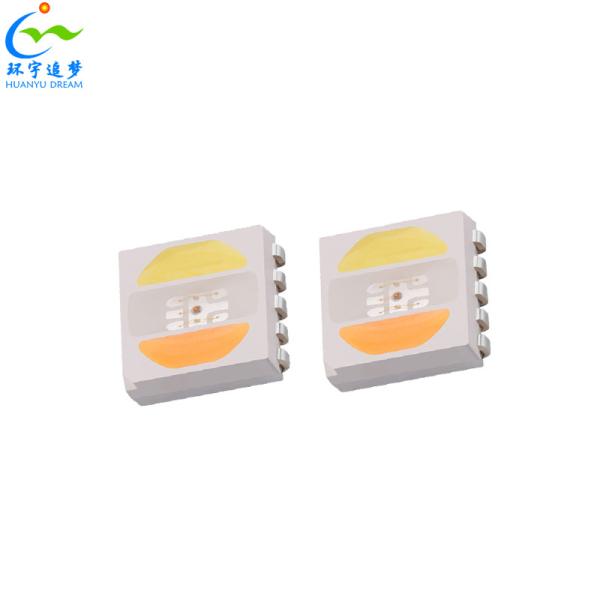

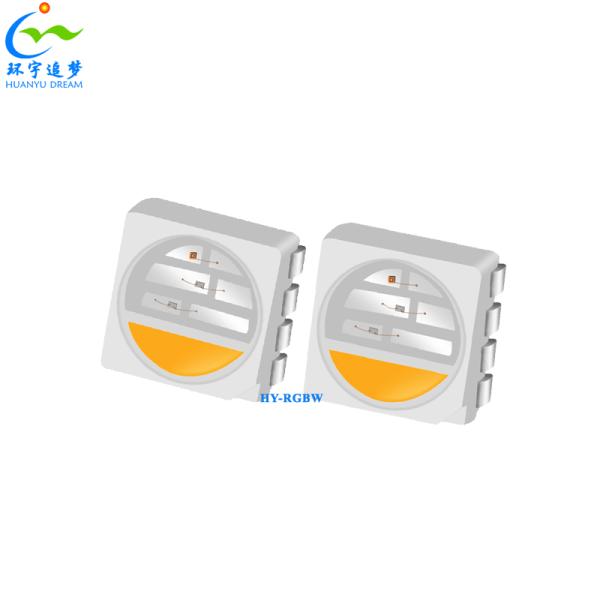

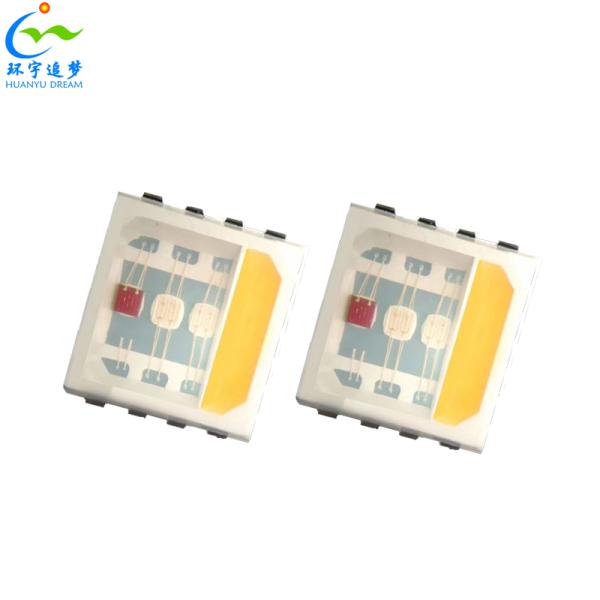

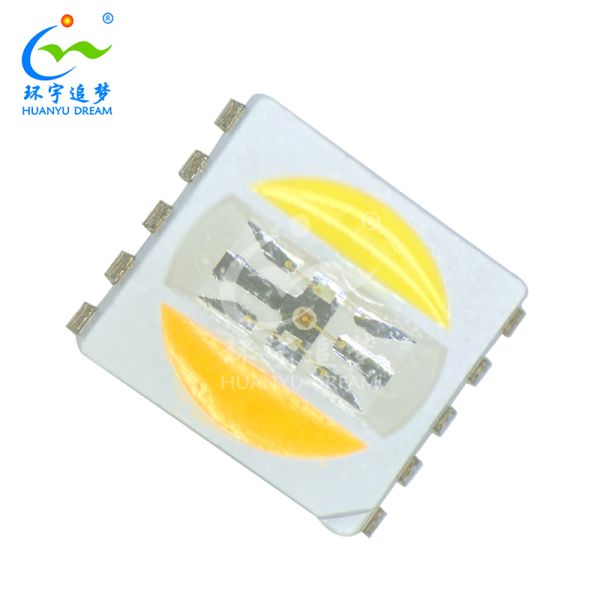

RGBW RGBW+W LED Chip Picture
 |  |
| RGBW 0.2W 0.8W | RGBW 2W 4W |
 |
| RGBCW 0.2W |
Application
Production Process
Product Tags:
|
|
5050 Multi Color SMD LED Chip 5050 0.2W RGBCW 2700K - 25000K Images
|
